Status Bar

The status bar lets you do the following:

• Access system messages in the in the System Messages panel. For details, see System Messages.
• See important system metrics. For details, see Metrics Area.

System Messages

The System Messages panel displays current problems and a system log containing errors, warnings, and general information, in two tabs.

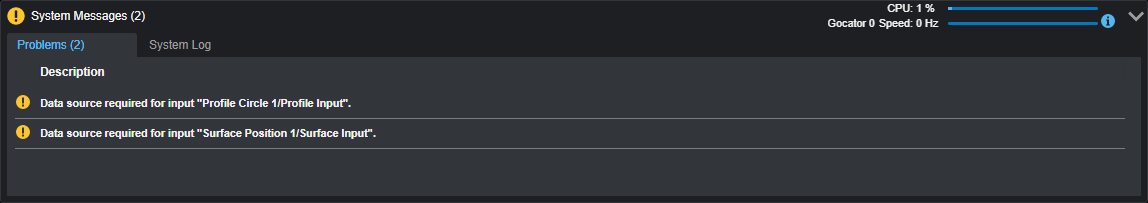

The Problems tab lists the current problems. Once you fix a problem, it is removed from the Problems tab.

Problems tab showing a current problem with the system. The number of problems is indicated in parentheses.

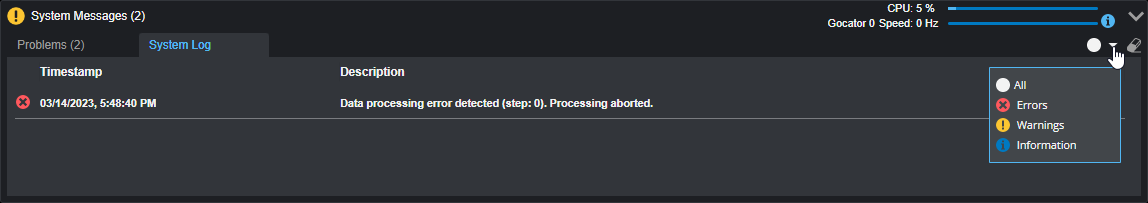

The System Log tab displays a complete list of system-level problems.

You can filter the log entry types using the filter drop-down to the right of the System Log tab, and clear the entries using the eraser button.

Metrics Area

The Metrics area on the right side of the status bar displays two important performance metrics: CPU load and sensor speed (current frame rate).

The CPU bar in the Metrics area displays how much of the CPU is being used.

The Speed bar displays the frame rate of the sensor.

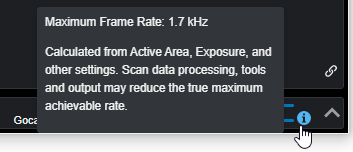

You can also see the maximum calculated frame rate by clicking the info icon to the right of the metrics area.
