Transformations

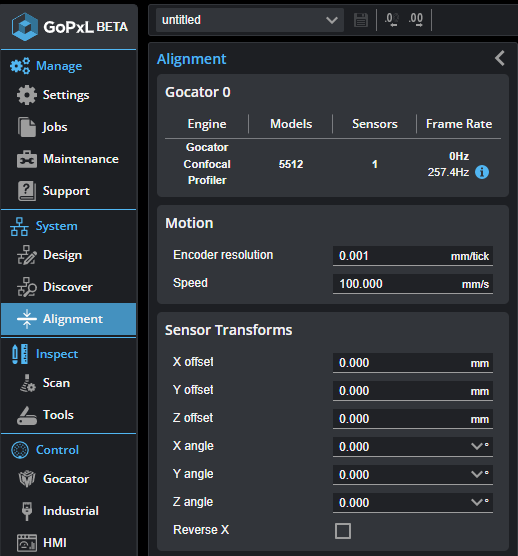

The transformation values determine how data is converted from unaligned coordinates to aligned coordinates (for an overview on coordinate systems, see Coordinate Systems). Transformation values are set automatically when you align a sensor using an alignment routine on the System > Alignment page.

Parameter	Description
X Offset	Specifies the shift along the X axis.
Z Offset	Specifies the shift along the Z axis. A positive value shifts the data toward the sensor.
Y Angle	Specifies the tilt around the Y axis.
