Array Index
The Array Index tool extracts a single piece of data (such as a profile or a surface) from the array it takes as input at the position (the index) you specify.
For information on adding, managing, and removing tools, as well as detailed descriptions of settings common to most tools, see Tool Configuration.
Inputs
| Name | Description |
|---|---|
|
Array Input |
The data the tool applies measurements to or processes. |
Parameters
The following parameters are in the expandable Parameters section in the tool's configuration.
| Parameter | Description |
|---|---|
|
Index |
The position (the index) in the array at which the tool extracts and outputs. If Count is set to a value greater than 1, the index is the starting point for array element outputs. |
|
Count |
The number of individual outputs the tool produces, starting at the provided index (see above). This setting makes sending multiple outputs over protocols easier. |
|
External ID |
The external ID of the tool that appears in GoHMI Designer. For more information, see GoHMI and GoHMI Designer. |
Outputs

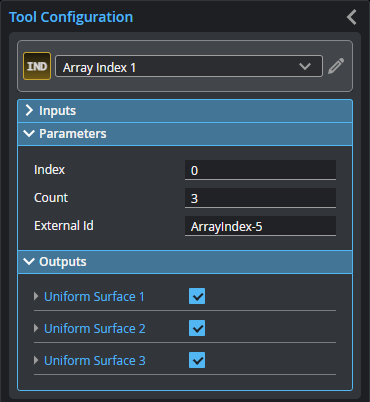

If Count is set to a value greater than 1, the tool produces multiple outputs.
The type of the output depends on the type of the input array.
