Training Archive
The Training Archive tool lets you conditionally add frames to a Surface Anomaly Detector project. (For more information on the Surface Anomaly Detector tool, see Surface Anomaly Detector.)
Inputs
You configure the tool's inputs in the expandable Inputs section.
|
To use a measurement as an anchor, it must be enabled and properly configured in the tool providing the anchor. For more information on anchoring, see Measurement Anchoring. |

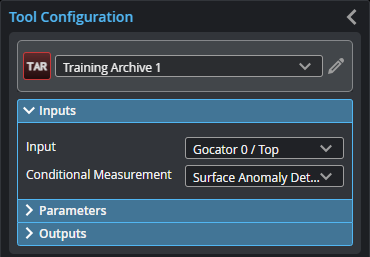

| Name | Description |
|---|---|
|
Input |
The data the tool applies measurements to or processes. |
|
Conditional Measurement |
The measurement the tool uses as a condition to add frames to a project. Some examples of measurements typically used are the "Is Anomaly" output of the Surface Anomaly Detector tool, the Result measurement of the Measurement Formula tool, or an "Output" output from a Script tool. |
Parameters
You configure the tool's parameters in the expandable Parameters section.

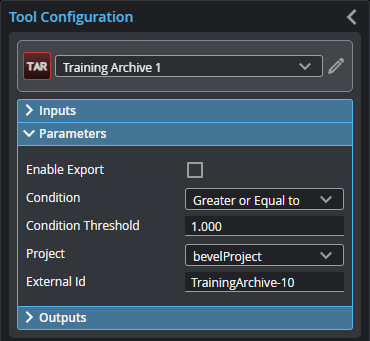

| Parameter | Description |
|---|---|
| Enable Export |
When this setting is checked, if the conditions are met (Condition and Condition Threshold parameters) the tool will add the current frame to the selected project. |
| Condition |
The type of condition (with respect to the measurement set in Conditional Measurement) the tool uses to determine whether to add a frame to the selected project. The frame is added based on the following options:
Fail or Invalid: If the selected measurement returns a Fail or Invalid result.
Invalid: If the selected measurement returns an Invalid result.
Pass: If the selected measurement returns a Pass result.
Less or Equal to: If the selected measurement less than or equal to the value provided in Condition Threshold.
Greater or Equal to: If the selected measurement greater than or equal to the value provided in Condition Threshold. |
| Condition Threshold | The value the tool compares with the measurement set in Conditional Measurement to determine whether to add a frame to the selected project. This parameter is only displayed when Condition is set to "Less or Equal to" or "Greater or Equal to". |
| Project | The project the tool will add frames to if the selected conditions are met. |
|
External ID |
The external ID of the tool that appears in GoHMI Designer. For more information, see GoHMI and GoHMI Designer. |
Outputs
Most tools provide measurements, geometric features, or data as outputs.
You configure the Min and Max parameters by expanding the measurement in the Outputs section. In order for a measurement to return a Pass decision, the measurement must be between maximum and minimum values; the range is inclusive.

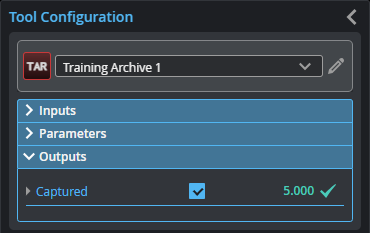

| Measurement |
|---|
|
Captured The number of frames added to the project selected in Project so far. |
